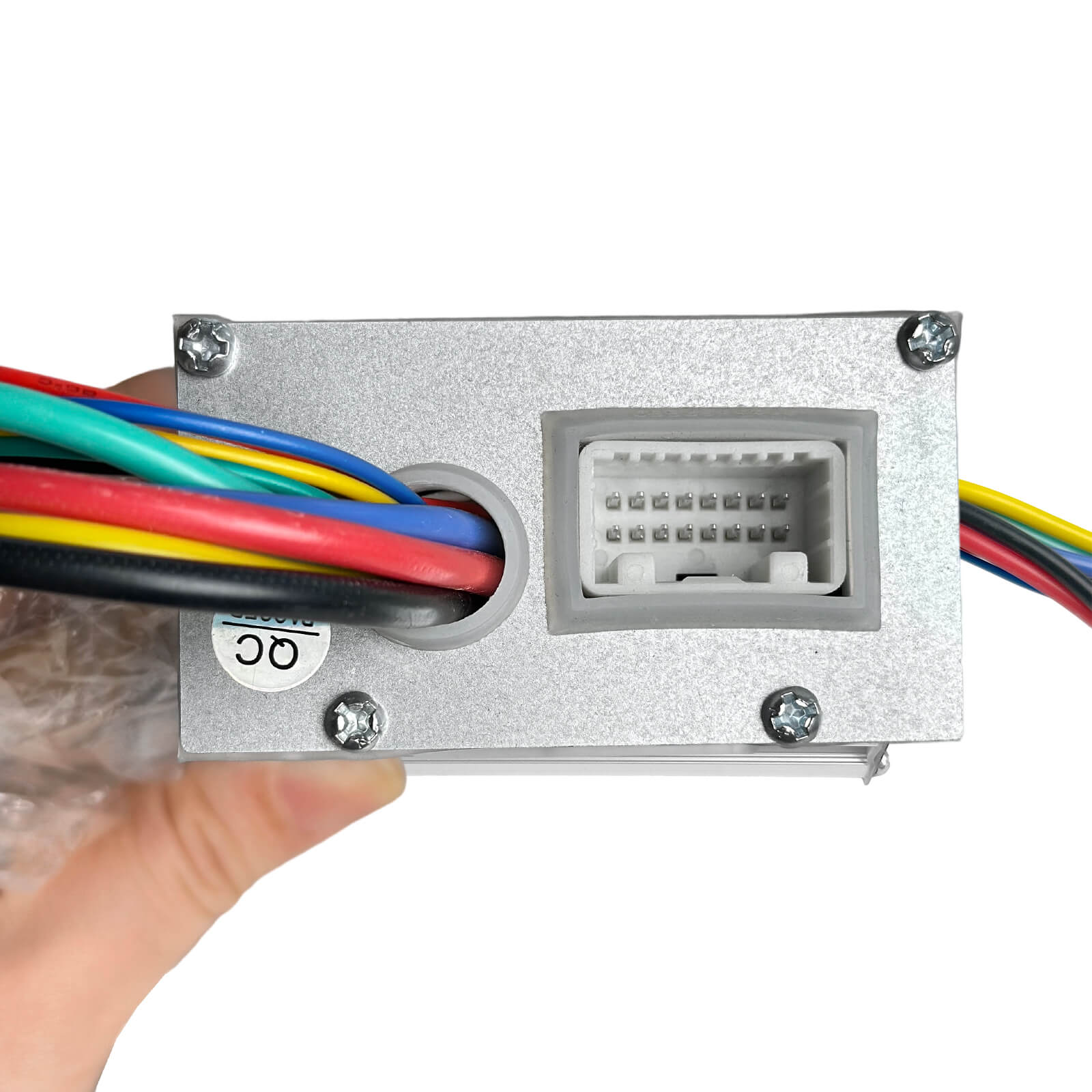

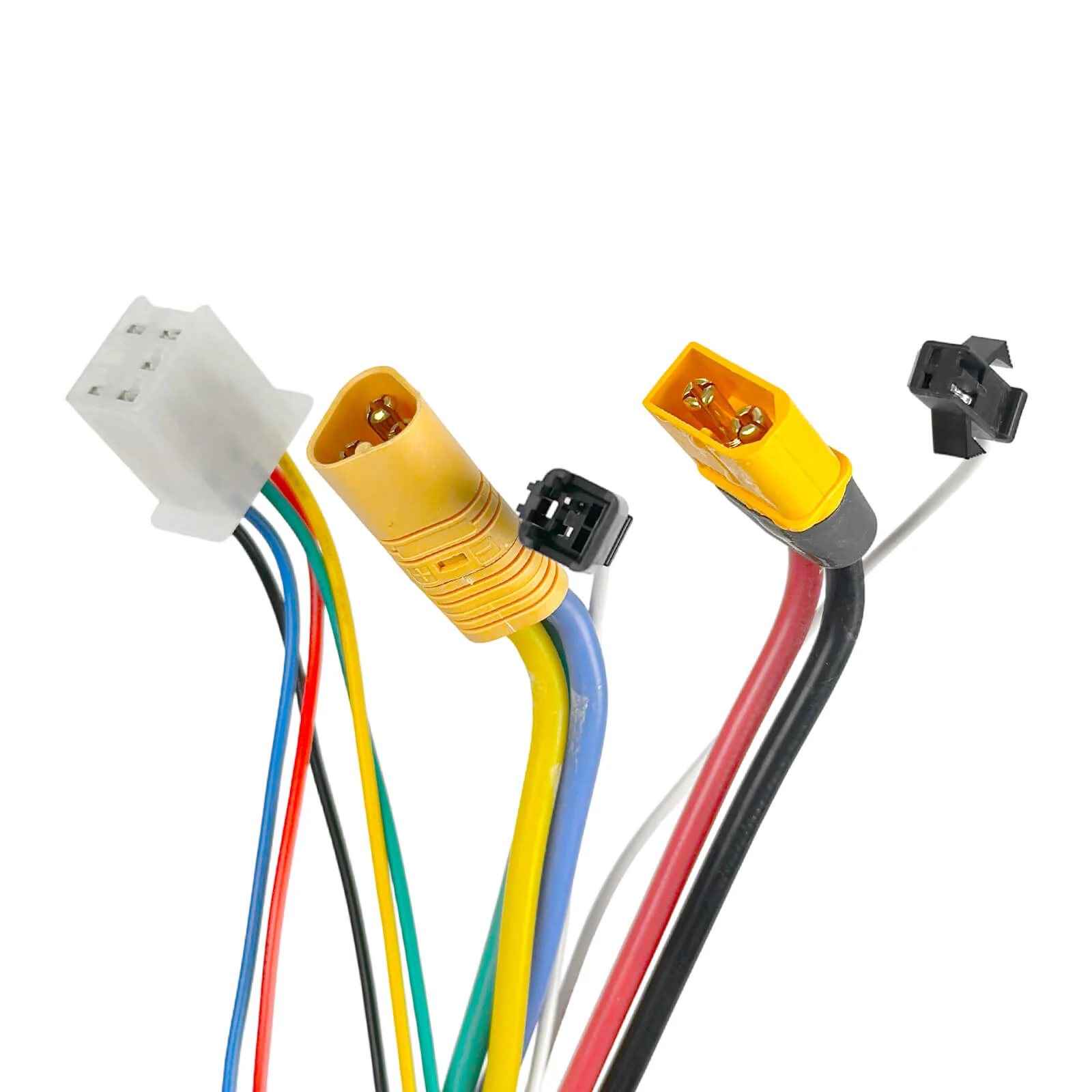

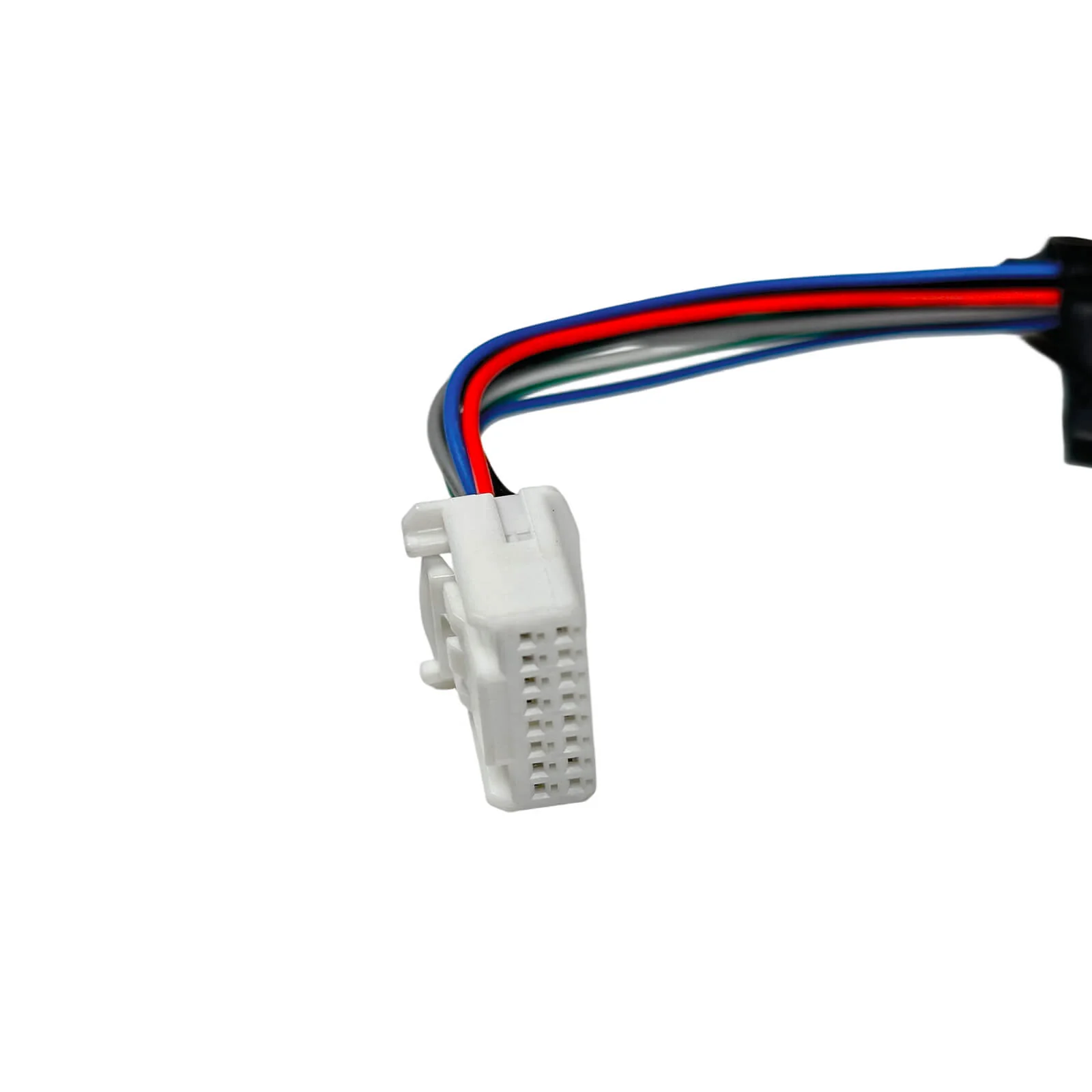

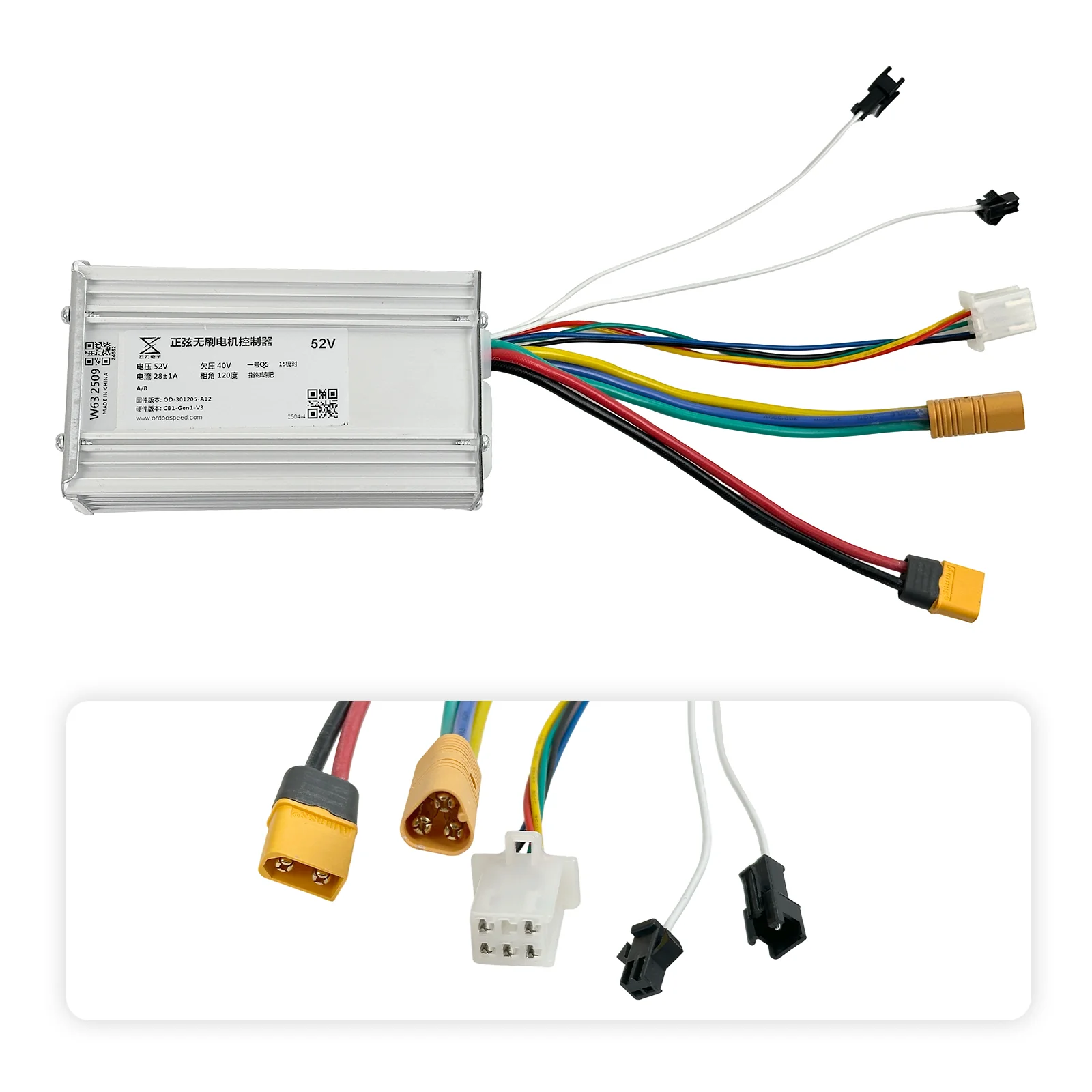

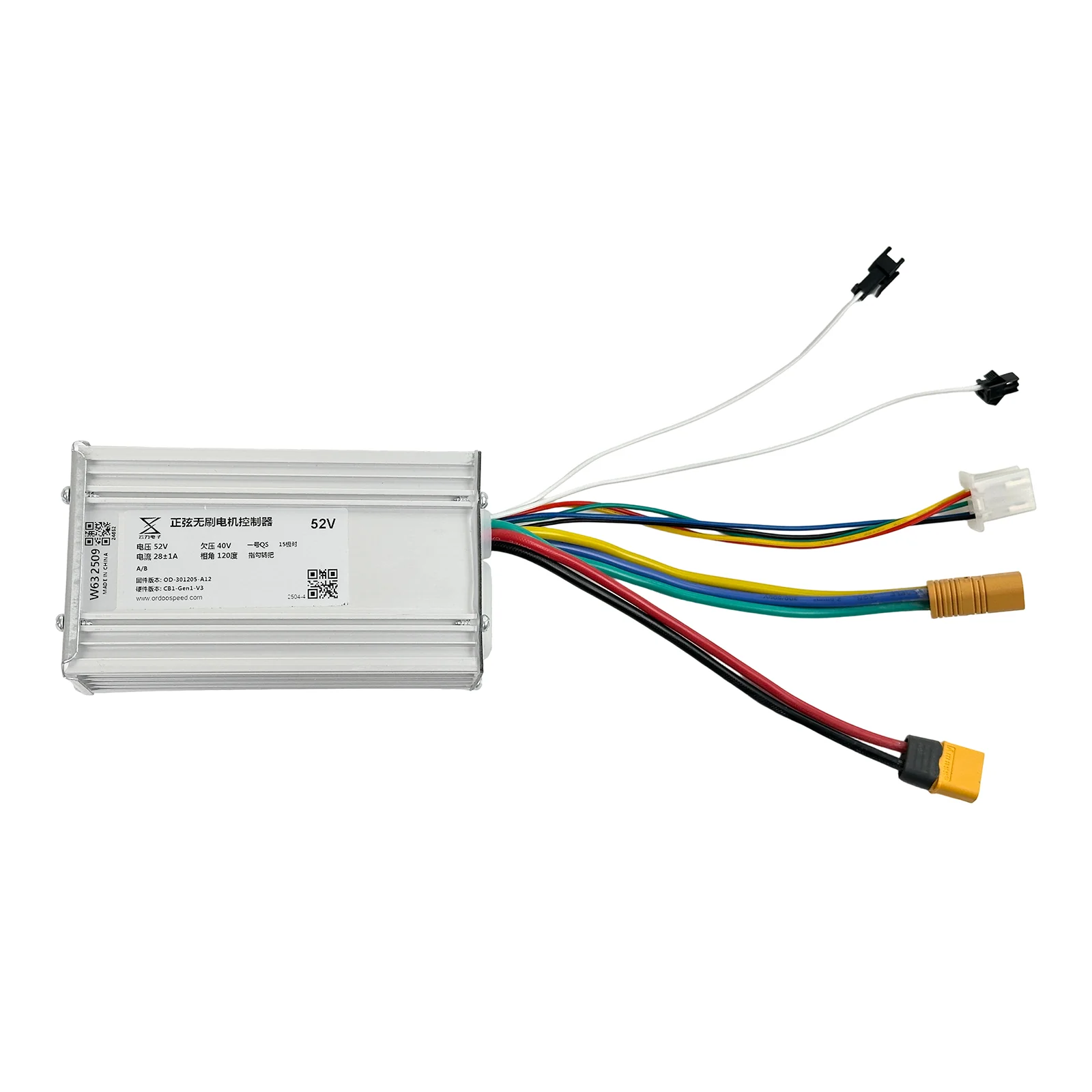

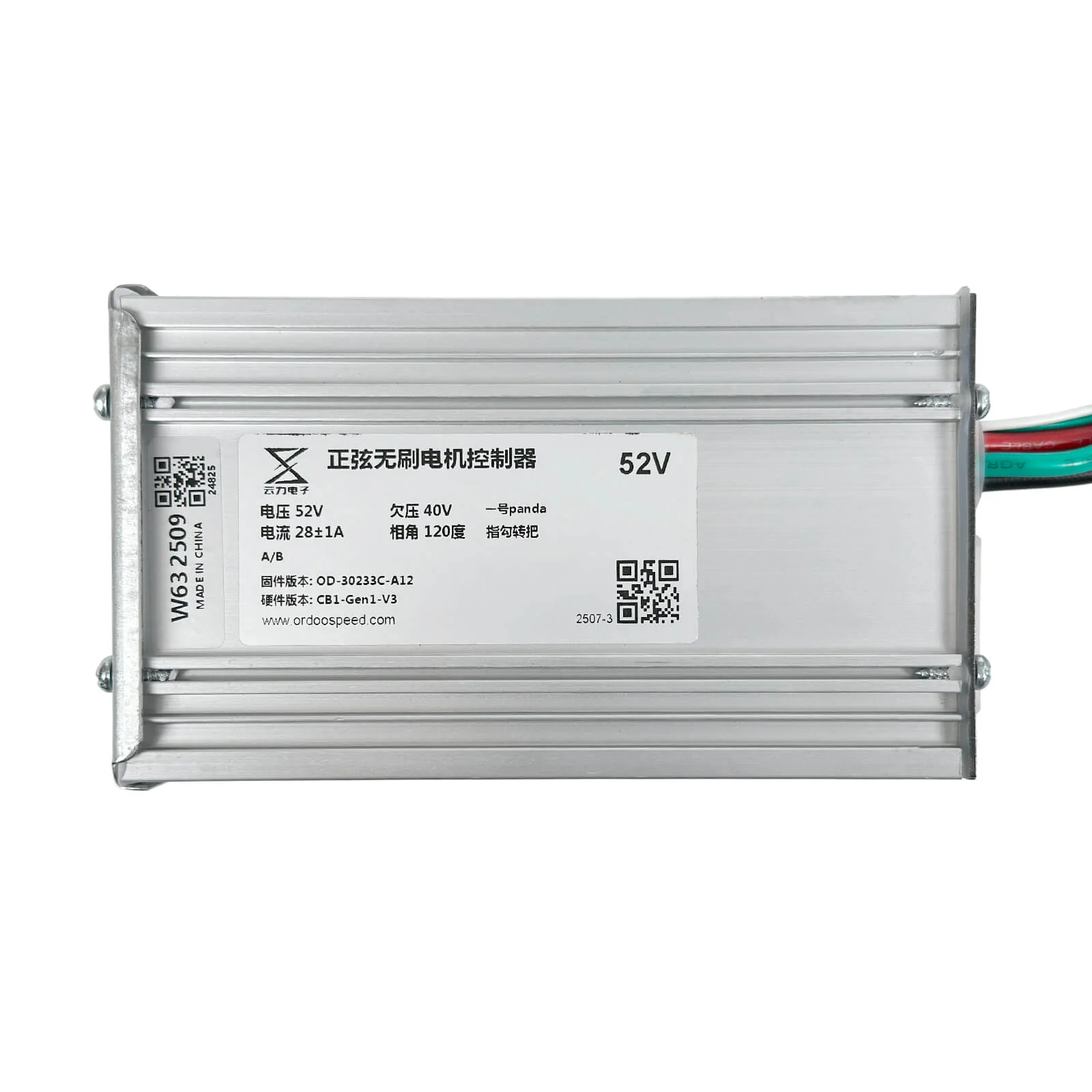

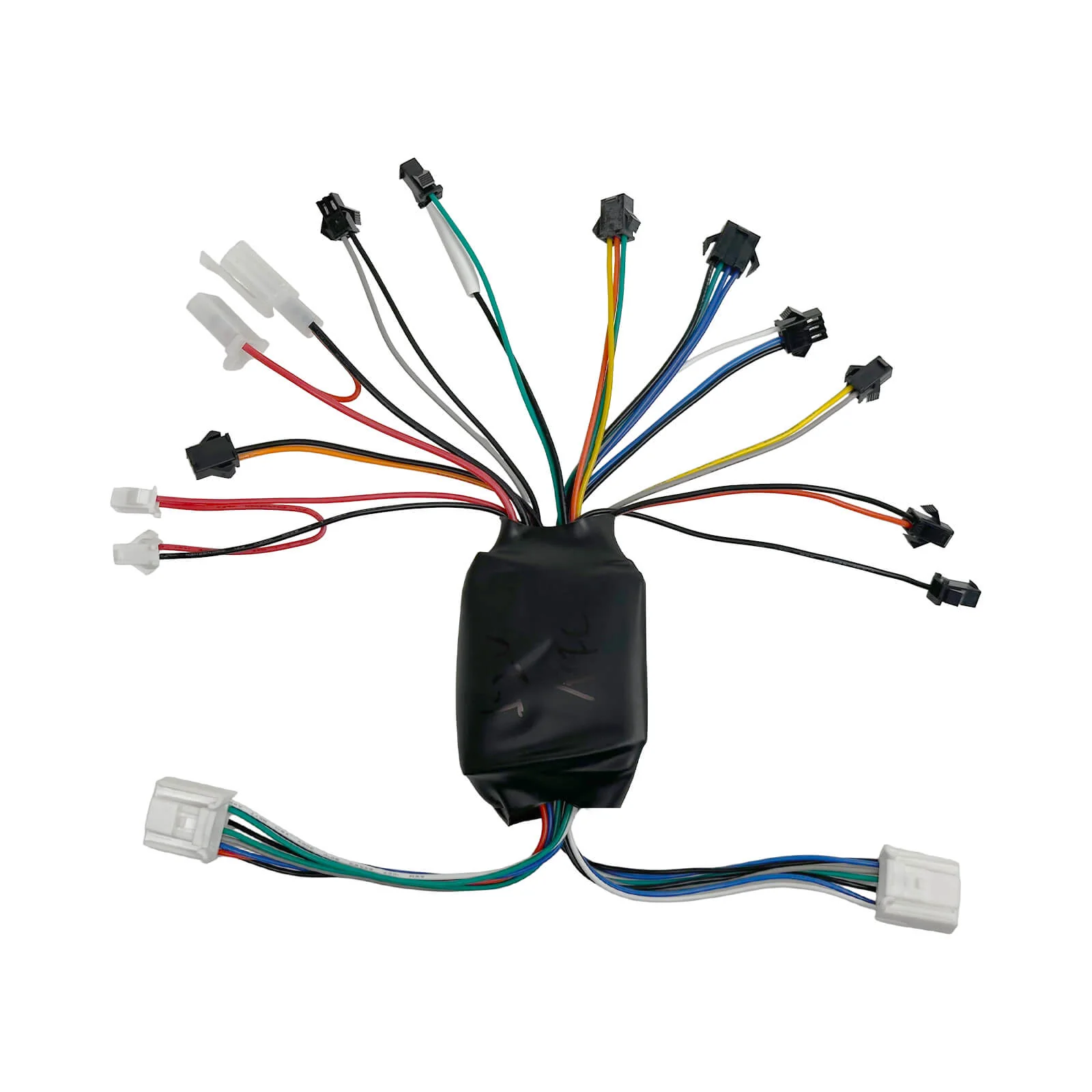

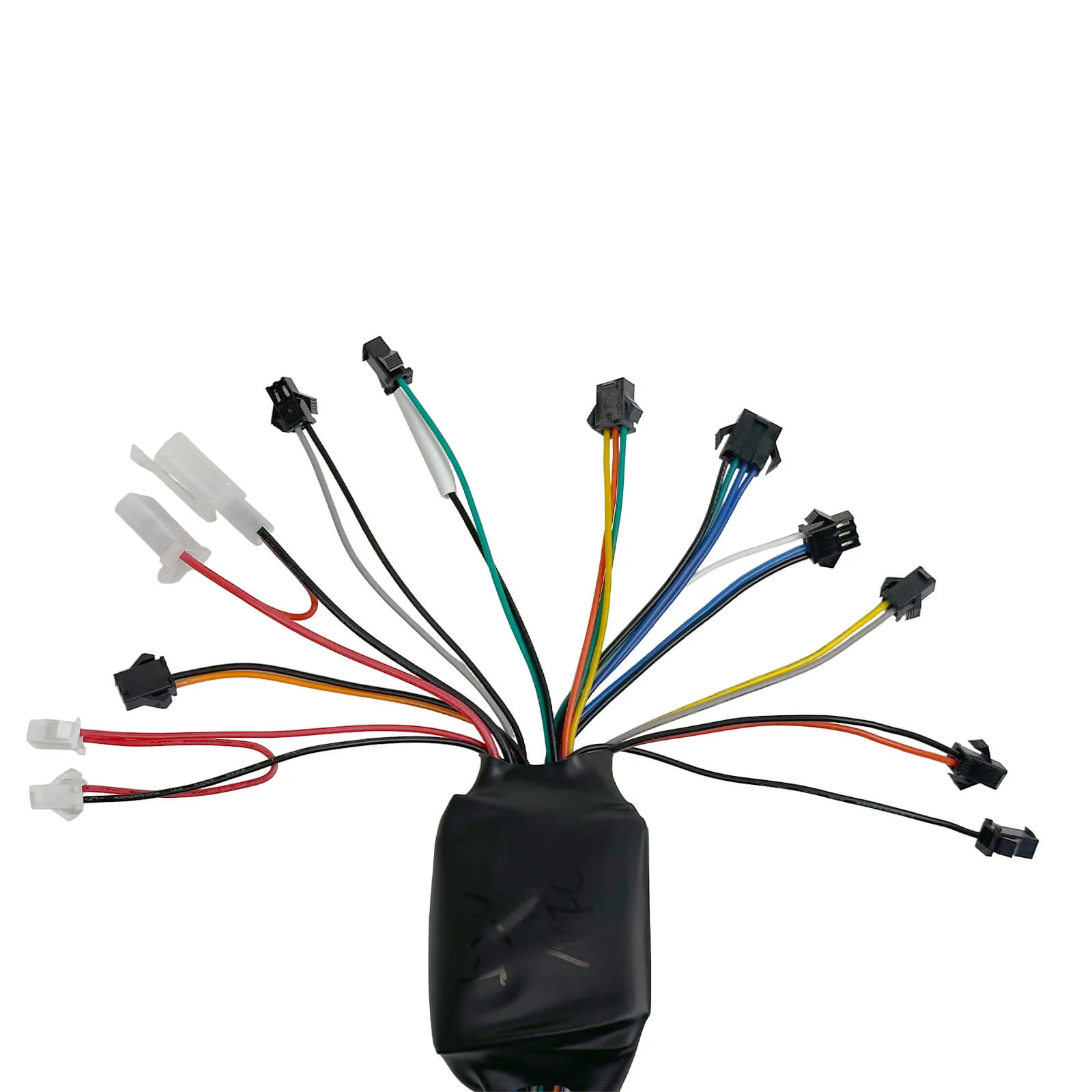

Yuinli 52V 28A Controller for T108 28.8Ah
Specification
- Model Yunli 52V 28A Controller
- Type Electric Scooter Controller
- Applicable Display Panda Display / Smart LCD Central Display with NFC
- Applicable Motor HM 52V 1200W Motor (2nd generation) is also compatible with T108 produced before 2025 that use the 1000W motor version.
- Applicable Models Compatible with HALO KNIGHT T108 28.8Ah (is also compatible with T108 produced before 2025 that use the 1000W motor version.)
- Rated Voltage 52V
- Rated Current 28A
- Interchangeable The Front and Rear Controllers Are Interchangeable
- Size Approximately 12cm*6.8cm*4cm
- Weight Approximately 0.32kg
Package Included

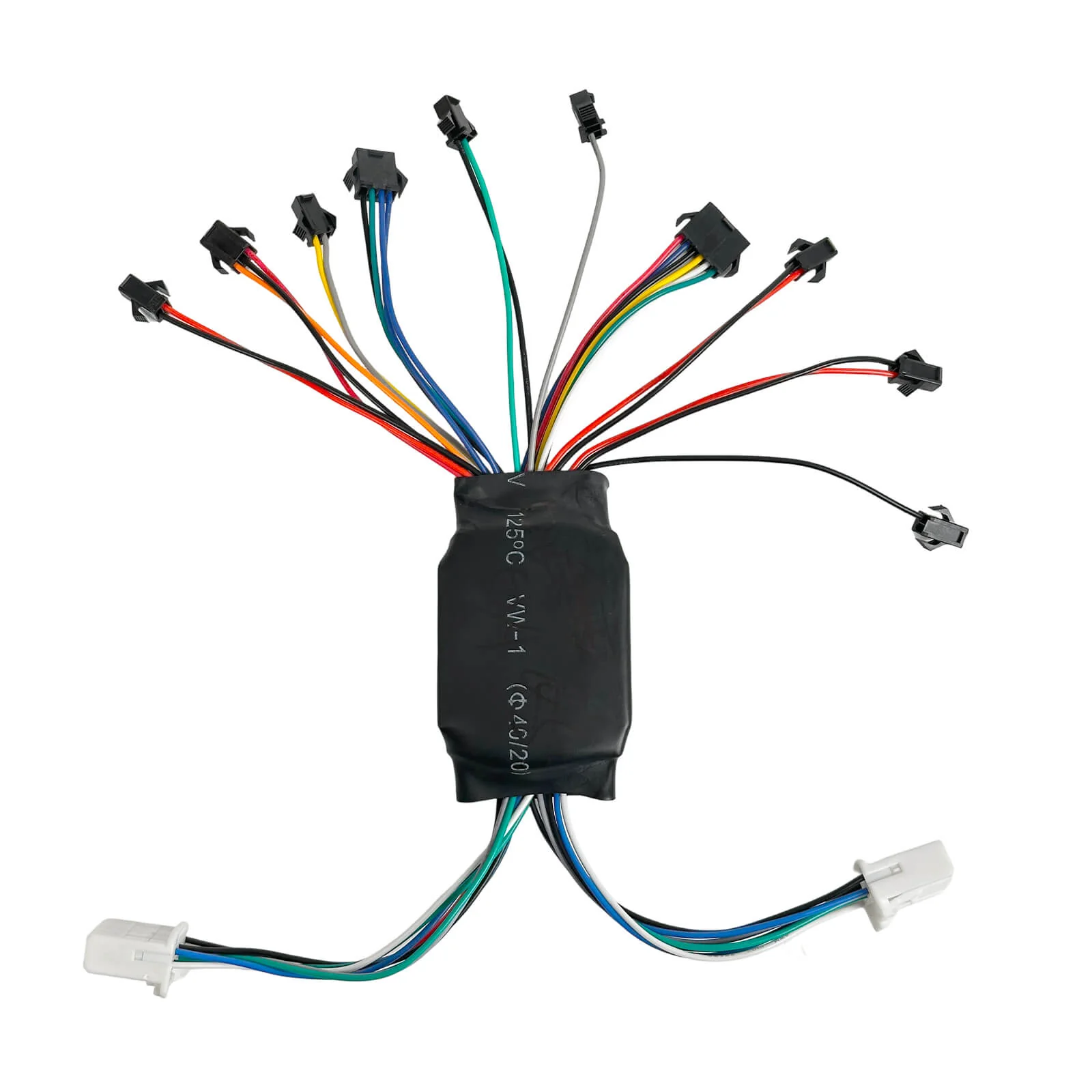

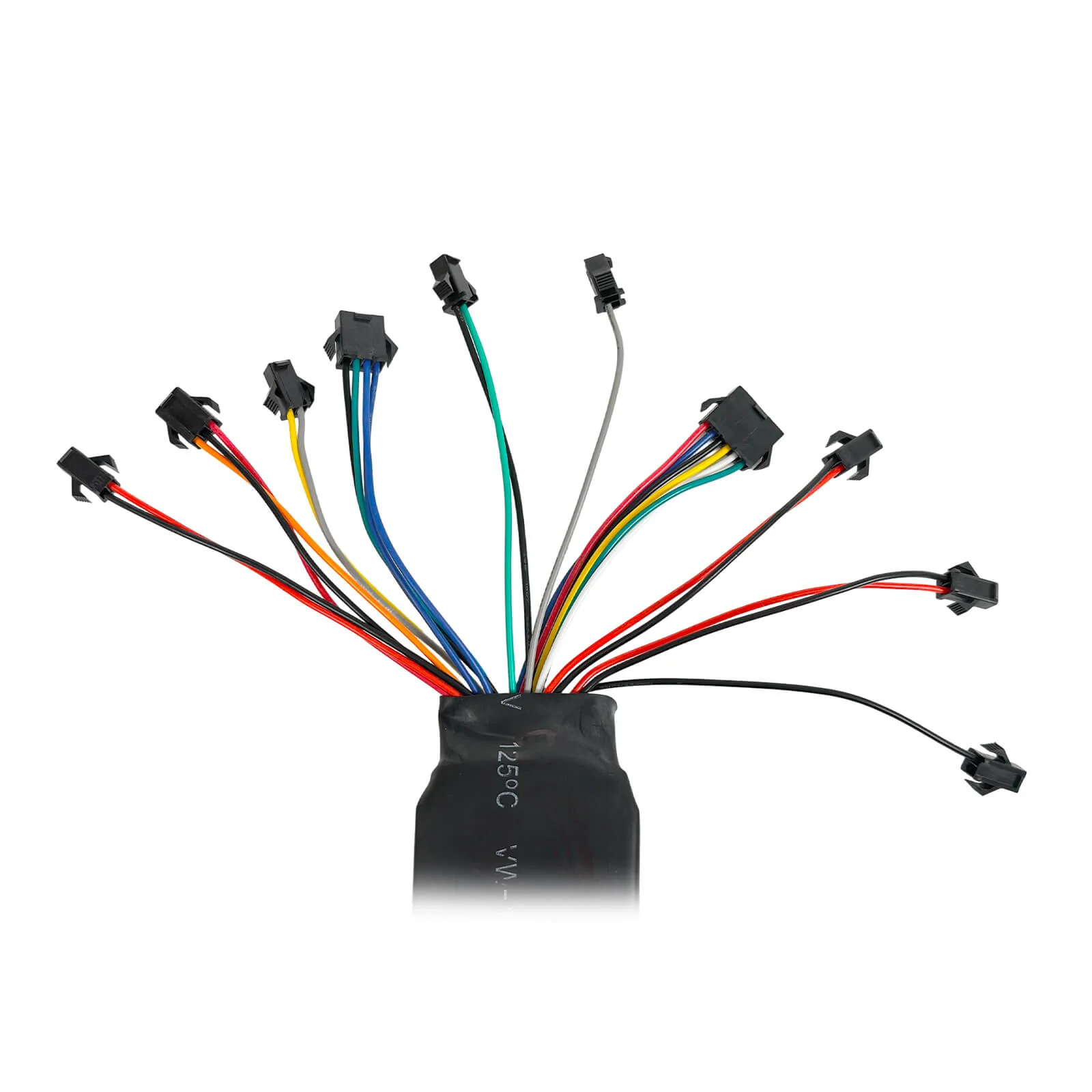

1 x Yunli 52V 28A Controller/Center Circuit Board (Panda Display version / Smart LCD Central Display with NFC version — optional)
Notice
-
The Controller and Center Circuit Board has two separate versions:
-
Panda Display version
-
Smart LCD Central Display with NFC version
Please select the correct version according to your display type.
-
-
The front and rear controllers are the same and interchangeable.
-
Compatibility is limited to T108.
-
Before making a purchase, please contact our customer service team at [email protected] and provide a photo of your original controller/electrical board for compatibility confirmation
After replacing the controller, you MUST perform controller learning before riding the scooter.
Using the controller without completing the learning process may cause:
- Reverse wheel rotation
- Motor malfunction
- Controller overheating
- Permanent controller damage or burnout
Please note:
Controllers damaged due to failure to perform controller learning correctly are NOT covered under warranty or after-sales service.
Quick Controller Learning Guide
- Lift the scooter so both wheels are suspended off the ground.
- Connect the controller’s white learning cable.
- Turn on the scooter and enable dual motor mode.
- Do NOT press the throttle or brake during learning.
- Wait for both wheels to rotate forward normally.
- Disconnect the learning cable and restart the scooter.
For detailed controller learning instructions, troubleshooting, and safety precautions, please refer to our full tutorial blog:
Electric Scooter Controller Learning Tutorial
