Yuinli 72V 60A Controller Compatible with LCD Display for HALO KNIGHT T107Max
Specification
- Model Yunli 72V 60A Controller
- Type Electric Scooter Controller
- Applicable Display LCD Display
- Applicable Motor HM 72V 4000W Motor
- Applicable Models Compatible with LCD Display for HALO KNIGHT T107Max
- Rated Voltage 72V
- Rated Current 60A
- Interchangeable The Front and Rear Controllers Are Not Interchangeable, The Front and Rear Controllers Are Different
- Size Approximately 17.5*10*5cm
- Weight Approximately 0.98kg
Package Included

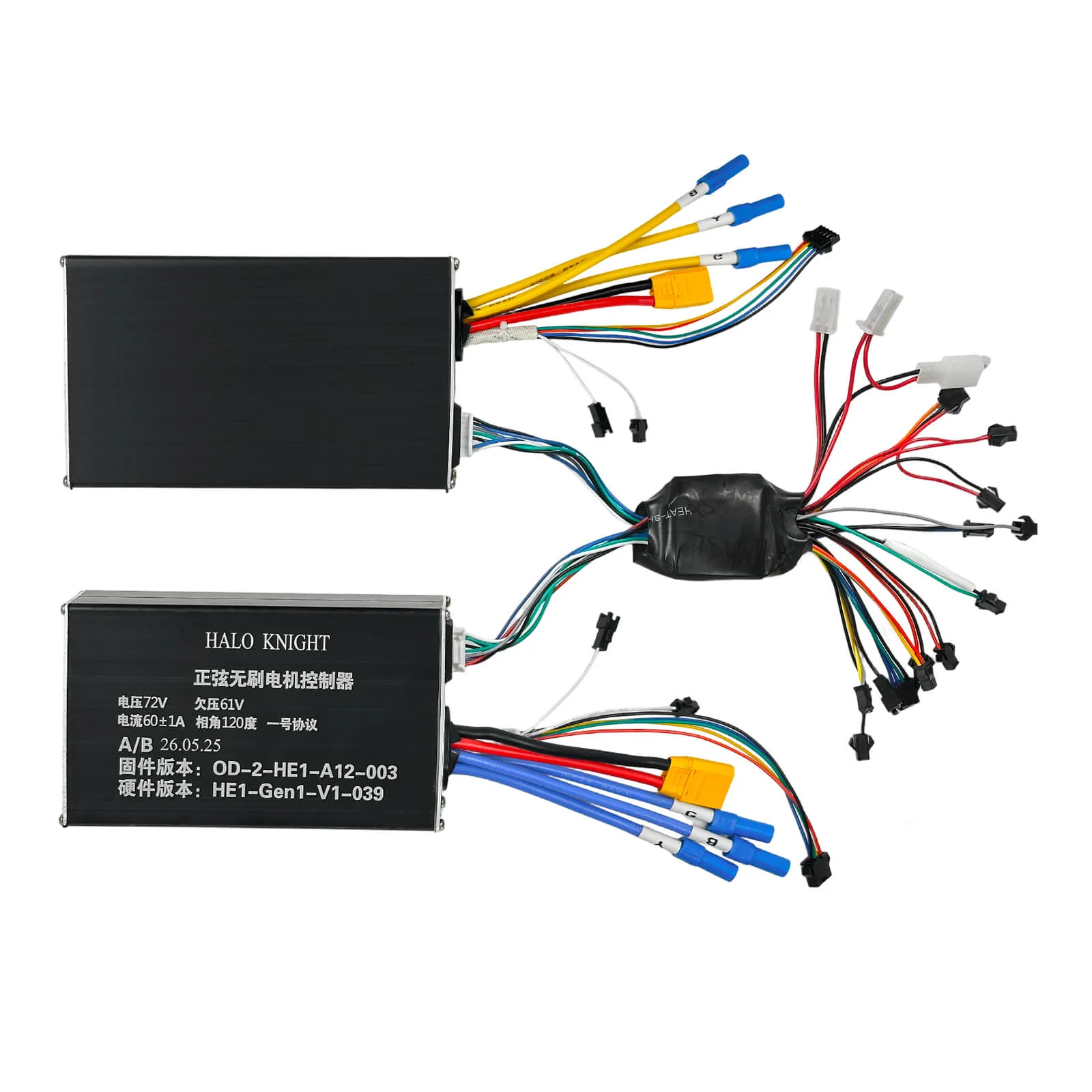

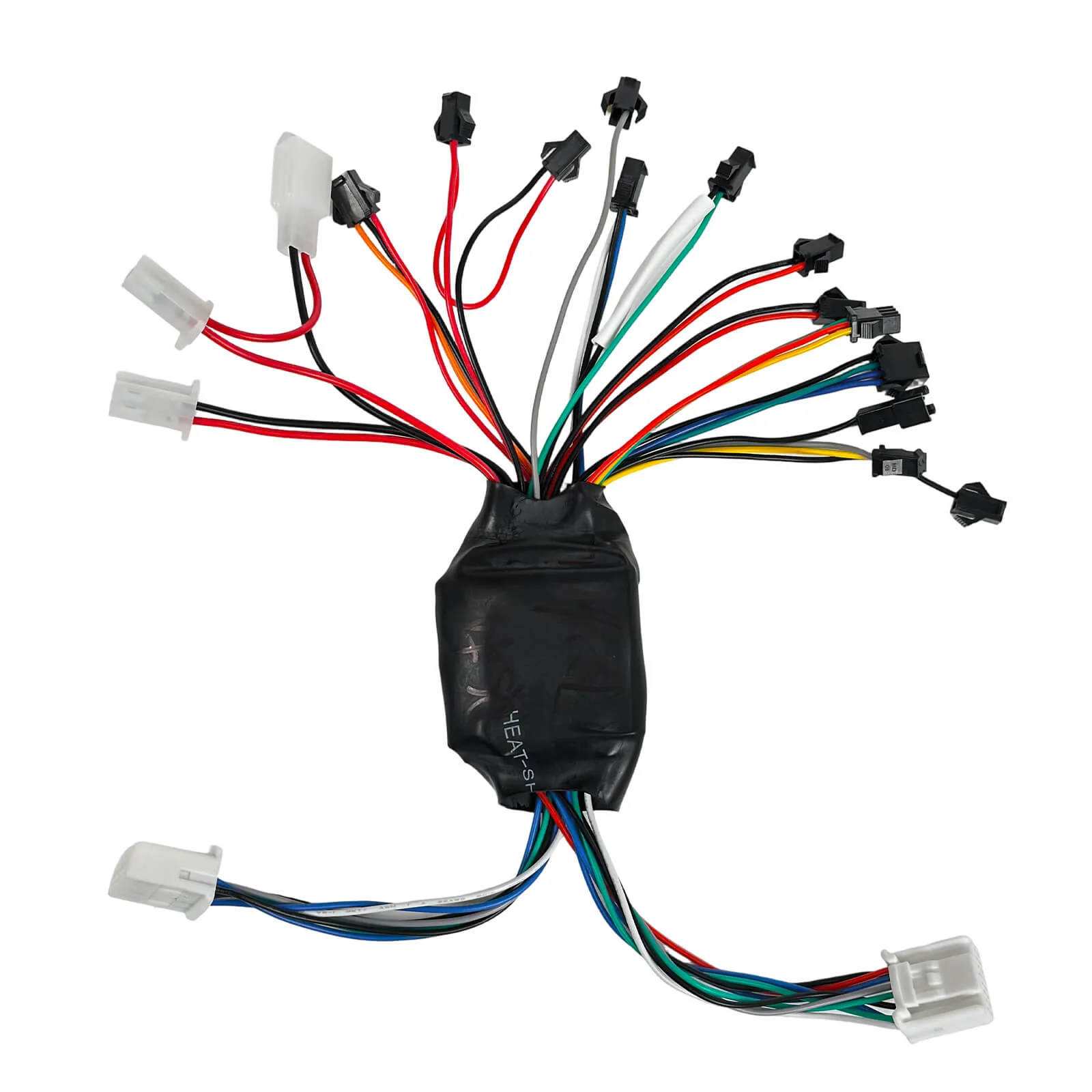

1 x Yunli 72V 60A Controller A / 1 x Yunli 72V 60A Controller B/ Center Circuit Board (optional)
-
Compatible with LCD Display for HALO KNIGHT T107Max.
-
Before making a purchase, please contact our customer service team at [email protected] and provide a photo of your original controller/electrical board for compatibility confirmation.
- The LCD instrument is shown in the figure.
After replacing the controller, you MUST perform controller learning before riding the scooter.
Using the controller without completing the learning process may cause:
- Reverse wheel rotation
- Motor malfunction
- Controller overheating
- Permanent controller damage or burnout
Please note:
Controllers damaged due to failure to perform controller learning correctly are NOT covered under warranty or after-sales service.
Quick Controller Learning Guide
- Lift the scooter so both wheels are suspended off the ground.
- Connect the controller’s white learning cable.
- Turn on the scooter and enable dual motor mode.
- Do NOT press the throttle or brake during learning.
- Wait for both wheels to rotate forward normally.
- Disconnect the learning cable and restart the scooter.
For detailed controller learning instructions, troubleshooting, and safety precautions, please refer to our full tutorial blog:
Electric Scooter Controller Learning Tutorial
